Watch Lug Adapter Compatibility : Why Genuine Watches Matter

When ordering a watch strap with an adapter,whether it is a custom leather watch strap or rubbe watch strap, you may notice that we first ask whethelyour watch is a genuine/original watch

Most of watches use a spring bar connection system — the strap is secured to the case by a single spring-loaded bar, and the only critical measurement is the lug width. If the width matches, it basically fits.

But for some luxury watches like Hublot, Audemars Piguet, Richard Mille, Corum, the story is entirely different. Their watch straps don’t connect directly with a spring bar — instead, they attach to the case through a custom adapter (end link).

In this guide, you will learn:

What is a watch strap adapter?
Why do some luxury watches need an adapter?
What are the benefits of a watch strap withan adapter?
Why does adapter compatibility depend onthe genuine watch?

What Is Watch Strap Adapter?

A watch strap adapter is a specially engineered component that connects a watch strap to the watch case.It may also be called a Watch lug adapter / watch strap connector,usually made with hardware stainless steel.

If you’d like to learn more about what a watch strap adapter is, check out our detailed guide: What Is a Watch Lug Adapter?

Why Do Some Watch Straps Need an Adapter?

The main reason is to achieve a closer and moreintegrated connection between the watch caseand the strap.

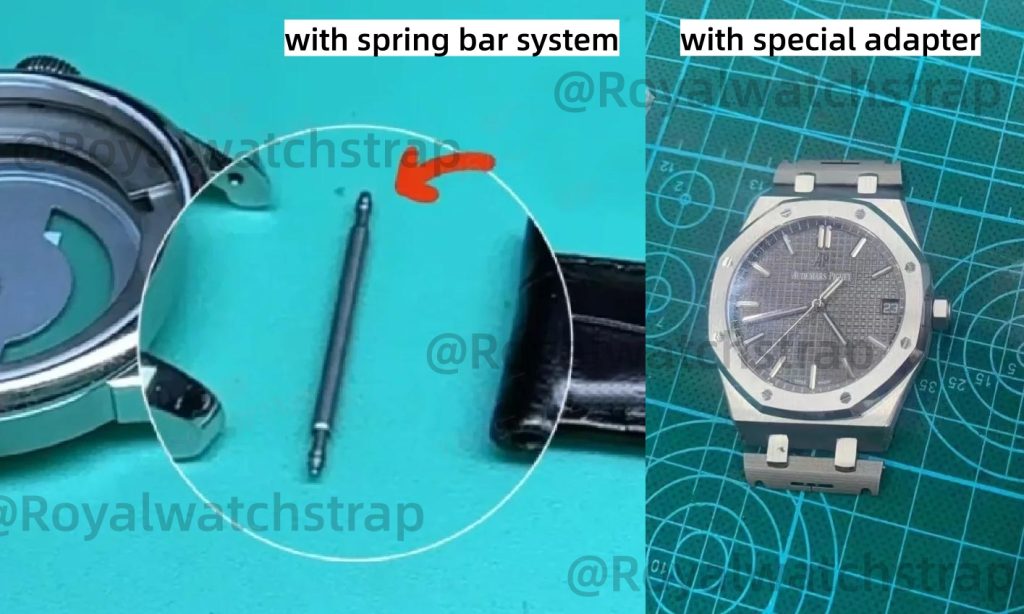

With a traditional straight-end strap, the connection is relatively simple

The adapter is shaped specifically to fit the watch case.This allows the strap to follow the case moreclosely and can create a much cleaner transition.

And for some luxury watches, the lugs don’t even have spring bar holes — which means a standard straight-end strap simply cannot be installed at all.

Why Does a Watch Strap With Adapter Need to Match a Genuine Watch?

When we ask whether your watch is genuine, weare not asking for the purpose of judging thewatch.

We ask because a custom watch strap with adapter is manufactured according to specific watch dimensions.

A standard strap has relatively simple reauirements:As long as the lug width is correct.But an adapter does not.

The adapter may need to match several dimensions:

Case shape
Case curvature
Lug geometry
Screw/pin diameterScrew/pin position
Hole diameter
Hole location
…

This means the tolerance can be extremelysmall. Even if a watch can look almost identical to anothewatch while still having slightly different dimensions.

For a conventional strap, those differences may not matter.

For a precision adapter, they may cause can’t be installed.

Why Can a Small Size Difference Make the Strap Not Fitting?

Let’s take a replacement watch strap for Patek Philippe Cubitus with acustom adapter as an example.

The important point is that the strap is notsimply attached according to its width.The entire connection system needs to match

1, The Screw Pin Can't Not Pass Through

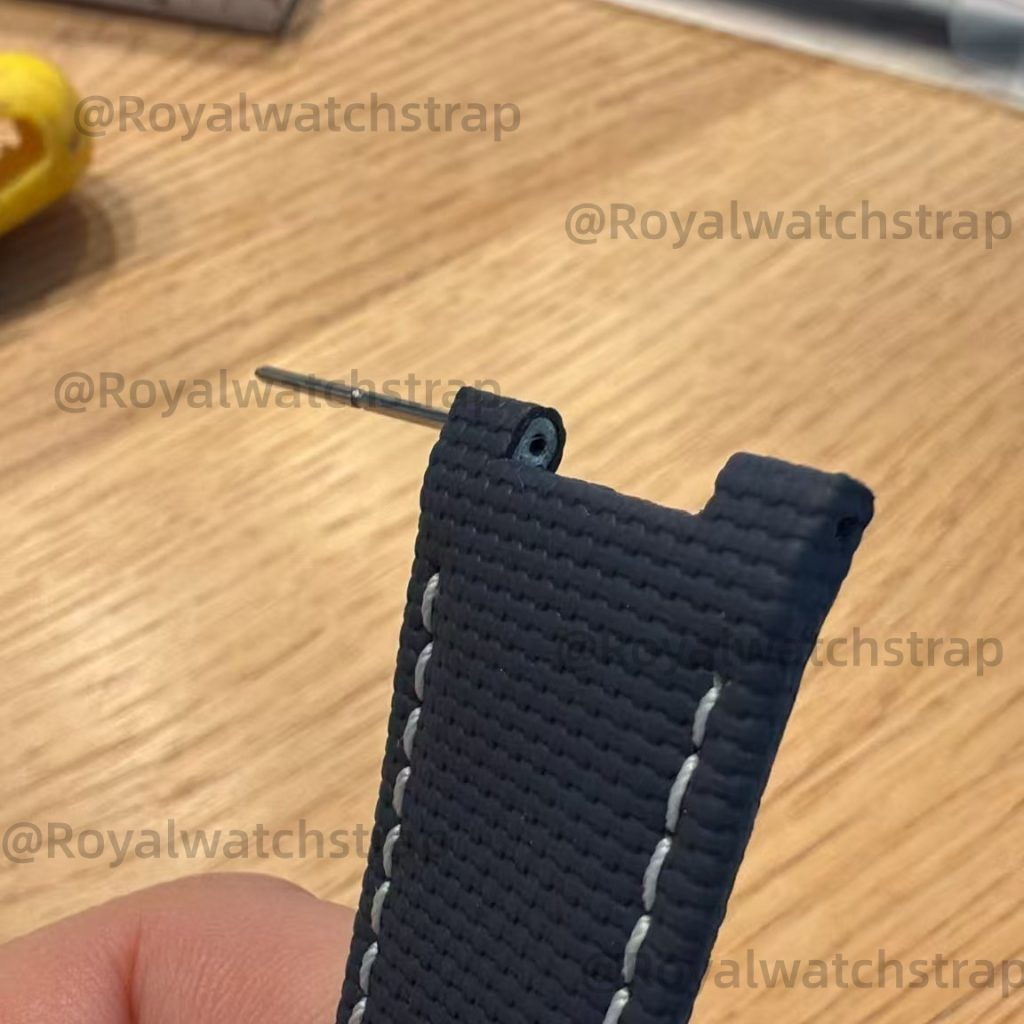

As show in the picture,a customer’s replica was fitted with a 1mm screw pin, whereas the genuine version of the same watch uses a screw pin smaller than 1mm — a seemingly minor difference that made the adapter incompatible with his replica.Because the adapter and strap are manufactured aroundthe dimensions of the data of the genuine watch

This is why knowing only the strap width is notenough.The pin diameter, hole diameter, and holeposition also matter.

2, 1 mm Difference Can Create a Visible Gap

The second problem is the fit between the adapter and the watch case.On a genuine watch, the watch strap should sit closely against the case.But if the connector is slightly different, avisible gap may appear.Even approximately 1 mm ofdifference can create a noticeable spacebetween the adapter and the case,Although 1mm sounds very small, it is significant for a precision-fitted component.

Even if the width is correct, the lack of 1mm in adapter of the strap height makes it difficult to match the watch well, resulting in unsightly gaps and a risk of detachment

This is why we cannot guarantee that an adaptelwill fit simply because the watch looks identicalor the visible dimension appear similar.

As shown in the photos below, the strap with adapter may not be possible to install on the replica, and there is also a possibility of scratching the watch after installation

Why Can a Replica or Non-Genuine Watch Have Different Dimensions?

A replica watch may reproduce the overall appearance of the original veryclosely.However, visual similarity does not guarantee dimensional compatibility.

Different manufacturers may use slightlydifferent specifications for: Case dimensions / Lug spacing Case curvature / Screw holes / Pin diameter / Hole position..These differences may be difficult to notice,but a watch strap adapter is much less for giving.

An adapter is designed around a specific set ofmeasurements.

Custom Leather Straps With Connector For Genuine Watches

Why Can a Universal Straight End Watch Strap Sometimes Fit a Non-Genuine Watch?

This is an important distinction.

A traditional straight-end watch strap generallyuses a spring-bar system.In many cases, the primary measurement is thelug width.

For example, if a watch has a standard 20 mmug width,a 20 mm straight-end strap may fiteven if there are small differences elsewhere.The connection has more tolerance.

And straps with adapter strap is different The connection has more tolerance!

A custom adapter strap is different.it is depends on much more than thelug width.

Why Do We Confirm Your Watch Details Before Making a Custom Strap?

The adapter may look like a tiny, insignificant part. Yet this little component is exactly what determines whether a watch strap can be installed at all.

That is why we may ask you to provide:

Watch brand

Exact model/reference number

Original or replica

Lug measurements when necessary

These details help us determine the correctconnection structure before production.

For more information about why we confirm youlwatch measurements and details before makinga custom leather strap, see our guide:Custom Made Leather Watch Bands Guide.

FAQ

Q:Can I Measure The Adapter Size of My Replica For Confirmation?

A:No.Can’t gurantee the compatibility even if the size is same as the original

Q:Can use a straight-end strap instead of a strap with adapter?
A:It depends on the watch.Some watches can use a standard strap like corum and Tudor Fastrider Admiral, while others are desianed around a specialized connection system.Certain Hublot and Richard Mille models, forexample, may require a dedicated adapterconfiguration to achieve the correct connectionand appearance.

Q:Are watch straps with adapters more durable?

A:Its primary purpose is to create the seamless between the case and strap.Security depends on the complete connection system

Q: I’ve lost my original strap, so I can’t take measurements of the adapter. Can you still make a replacement?
A:Yes. We have fitment data for most major watch brands — simply confirm that your watch is genuine and provide us with the correct model reference, and we can craft a replacement strap tailored to your watch.

Final Thoughts

Watch strap with an adapter is different from a traditional straight-end strap.

Standard flat end strap may only require the correctlug width

But a custom adapter strap depends on much more,that is why we ask customers whether their watch is a genuine/original watch beforeconfirming certain custom adapter-equipped.This is not about judging the watch,it is about precision.

Whether you are looking for a custom leather watch strap, rubber watch strap, or replacement watch strap with an adapter, were commend confirming compatibility beforeplacing your order.
